Gabion Machine Spare Parts

•

  • Size/mm: φ98*1005

  • Weight/kg: 43.7

  • Remark: 6217

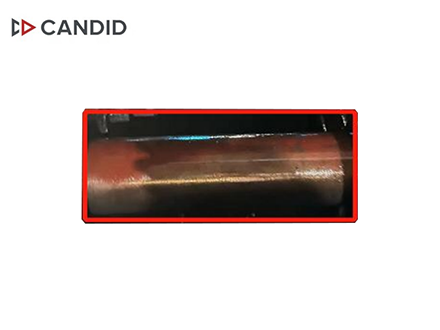

  Shaft For Small Drive Gear
•

  • Size/mm: φ110*779

  • Weight/kg: 46.6

  • Remark: 6218




  Shaft for Big Drive Gear
•

  • Size/mm: φ410*825

  • Weight/kg: 72

  • Remark: Internal camshafts




  Shaft for Big Gear
•

  • Size/mm: φ44*33*150

  • Weight/kg: 0.9

  Adjusting Screw
•

  • Size/mm:

  • Weight/kg:

  • Remark:







  Angled Lift Splits
•

  • Size/mm: φ2794*20*15

  • Weight/kg: 0.88

  • Remark: C2794







  Belt
•

  • Size/mm: φ90*105*335

  • Weight/kg: 14

  • Remark: Bore 85mm, Thickness 90mm







  Big Loop Bar
•

  • Size/mm: φ556*420*300

  • Weight/kg: 157







  Cam Core
•

  • Size/mm: （145-25）*68

  • Weight/kg: 80







  Cam
•

  • Size/mm: 75*31.75*160

  • Weight/kg: 11.6







  Chain
•

  • Size/mm: φ60*φ48*65

  • Weight/kg: 0.6







  Copper Brush For Driving System
•

  • Size/mm: φ110*90*130

  • Weight/kg: 3.4







  Copper Bush For Big Gear Shaft
•

  • Size/mm: φ950*410*105

  • Weight/kg: 337







  Gabion Machine Bif Gear
•

  • Size/mm: φ590*100*255

  • Weight/kg: 140







  Pully Wheel
•

  • Size/mm: 120*100*165

  • Weight/kg: 5







  Sliding Sleeve
•

  • Size/mm: φ110*60*24

  • Weight/kg: 0.9

  • Remark: 212







  Turbine Shaft
•

  • Size/mm: φ83*2030

  • Weight/kg: 48







  Big Bar
•

  • Size/mm: φ200*90*160

  • Weight/kg: 20.5







  Big Drive Gear
•

  • Size/mm: 4700*200*130

  • Weight/kg: 890




  • Size/mm: 5700*200*130

  • Weight/kg: 920










  Bottom Drag Plate
•

  • Size/mm: φ65*195

  • Weight/kg: 1.7

  • Remark: 66，88，110 Mesh







  Bottom Half Gear 3.5 Modulus
•

  • Size/mm: φ80*60*65

  • Weight/kg: 1







  Cam Sleeve
•

  • Size/mm: φ200*80*40

  • Weight/kg: 2.9







  Counting Disk
•

  • Size/mm: φ80*2000

  • Weight/kg: 80







  Driving Bar
•

  • Size/mm: 510*118*120

  • Weight/kg: 43







  Driving System
•

  • Size/mm: φ70*64*1260

  • Weight/kg: 7

  • Remark: Outer diameter 50







  Gabion Machine Huse Tube
•

  • Size/mm: φ16*12*13

  • Weight/kg: 0.015







  Half Gear Die
•

  • Size/mm: 50*40*130

  • Weight/kg: 1.3




  Limited Block
•

  • Size/mm: φ280*95*90

  • Weight/kg: 21.3







  Mesh Gear
•

  • Size/mm: 280*120*160

  • Weight/kg: 12.9

  • Remark: Copper bushing 780, housing 350







  Mesh Small Shaft Seat
•

  • Size/mm: φ219*4800

  • Weight/kg: 400




  Net Pulling Roller
•

  • Size/mm: 320*150*190

  • Weight/kg: 14.5

  • Remark: Copper bushing 780, housing 480







  Pull Net Large Shaft Seat
•

  • Size/mm: 4500*60*50

  Rack 4m
•

  • Size/mm: 700*270*1300

  • Weight/kg: 192







  Rubbing Frame
•

  • Size/mm: φ176*90*151

  • Weight/kg: 14.1







  Small Drive Gear
•

  • Size/mm: 90*90*380

  • Weight/kg: 9.3




  Small Loop Bar
•

  • Size/mm: 1470*630*1810

  • Weight/kg: 1200




  Turbobox
•

  • Size/mm: 4700*200*130

  • Weight/kg: 890




  • Size/mm: 5700*200*130

  • Weight/kg: 920




  Upper Drag Plate
•

  • Size/mm: φ65*210

  • Weight/kg: 1.8

  • Remark: 66, 88, 110 Mesh







  Upper Half Gear 3.5 Modulus
•

  • Size/mm: 5300*500*600

  • Weight/kg: 457







  Upper Pressure Network Device
•

  • Size/mm: 170*110*240

  • Weight/kg: 2.4







  Automatic Oil Feeding Device
•

  • Size/mm: 415*28*130

  • Weight/kg: 15




  Brake Block
•

  • Size/mm: Brake Pads

  • Weight/kg: 0.18







  Brake Pads
•
  Button Switch
•
  Circuit Breaker
•

  • Size/mm: φ330*95*130

  • Weight/kg: 48







  Copper Turbine
•
  Counting Table
•
  Cylinder
•

  • Size/mm: φ5.9*110

  • Weight/kg: 0.001

  • Remark: 15/KG







  Draping Hook
•
  Flange Base
•

  • Size/mm: 382.5*305*1000

  • Weight/kg: 15







  Frequency Converter
•

  • Size/mm: 13*6*4800

  • Weight/kg: 0.5







  Light Strip
•

  • Size/mm: φ12*45

  • Weight/kg: 0.02







  Oil Drain Plug
•

  • Size/mm:

  • Weight/kg:

  • Remark:

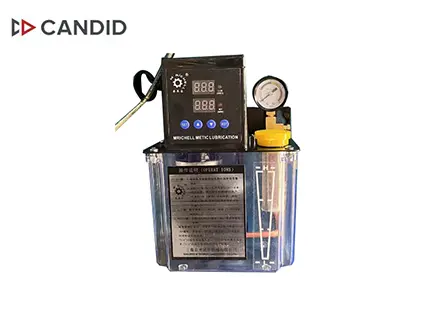

  Oil Pump Box
•

  • Size/mm: 100*100*70

  • Weight/kg: 1.4







  Oil Pump
•

  • Size/mm: φ105*85*12

  • Weight/kg: 0.005

  • Remark: TC85*110*12







  Oil Seal
•

  • Size/mm: φ12*60







  Proximity Switch
•

  • Size/mm: 350*140*160

  • Weight/kg: 8.2




  Rear Oil Pump With Motor
•
  Relay
•
  Sealing Ring
•
  Shaft Seat
•
  Signal Line
•

  • Size/mm: φ6*20

  • Weight/kg: 0.005







  Stainless Steel Screws
•

  • Size/mm: 382*220*50 Upper，340*220*40 Lower

  • Weight/kg: 44.5







  Toothed Plate
•

  • Size/mm: 190*140

  • Weight/kg: 1.7







  Touch Screen
•

  • Size/mm: φ8/φ10

  • Weight/kg: 0.8







  Trachea
•
  Triple Switch
•
  Two Swithches
•

  • Weight/kg: 0.6

  • Remark: BFC-3000







  Water Separator
•

  • Size/mm: φ145*1130

  • Weight/kg: 45







  Worm Endless Shaft
•

  • Size/mm: φ219*5800

  • Weight/kg: 500




  Net Pulling Roller
•
  Switch Power Supply
•

  • Size/mm: φ150*18208

  • Weight/kg: 89
