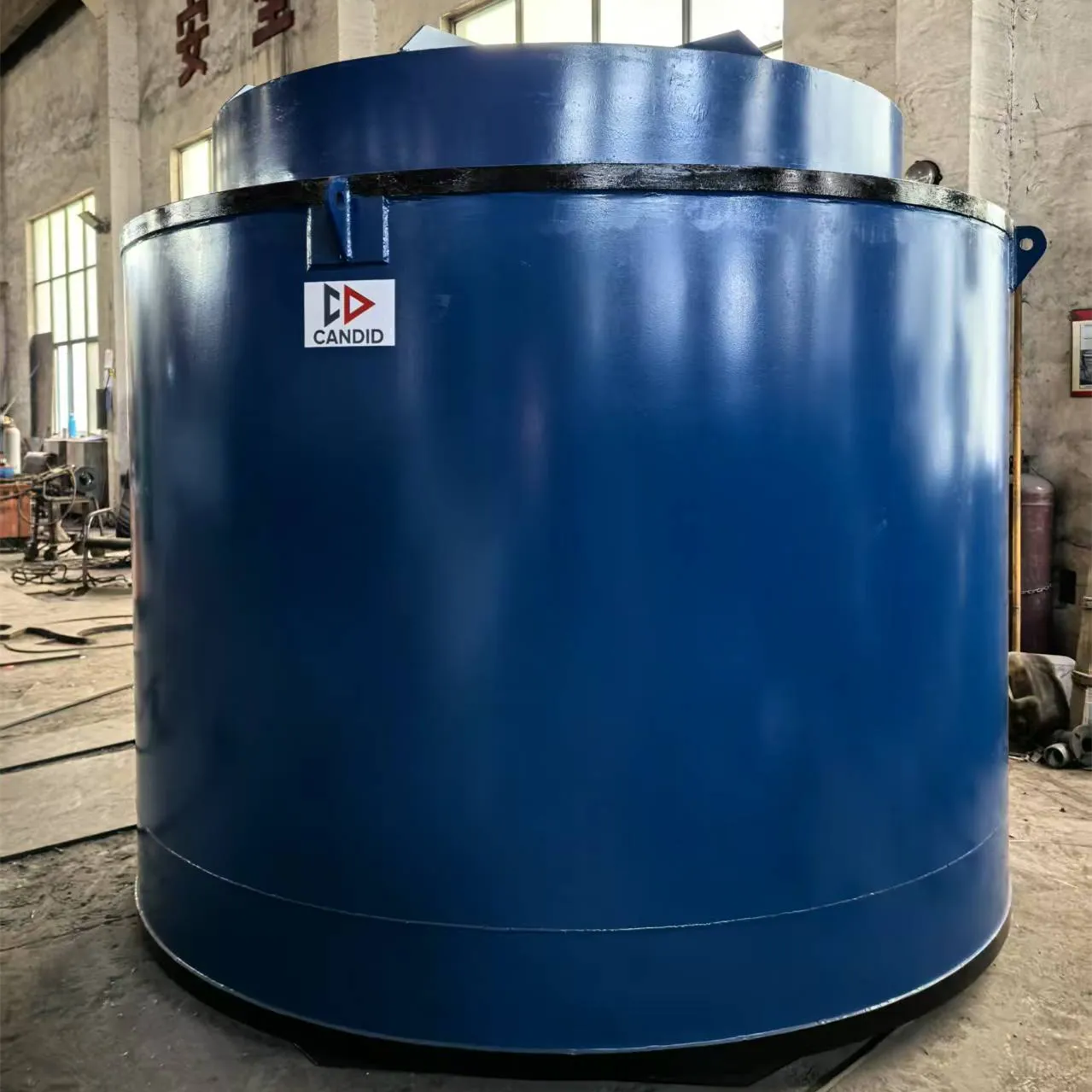

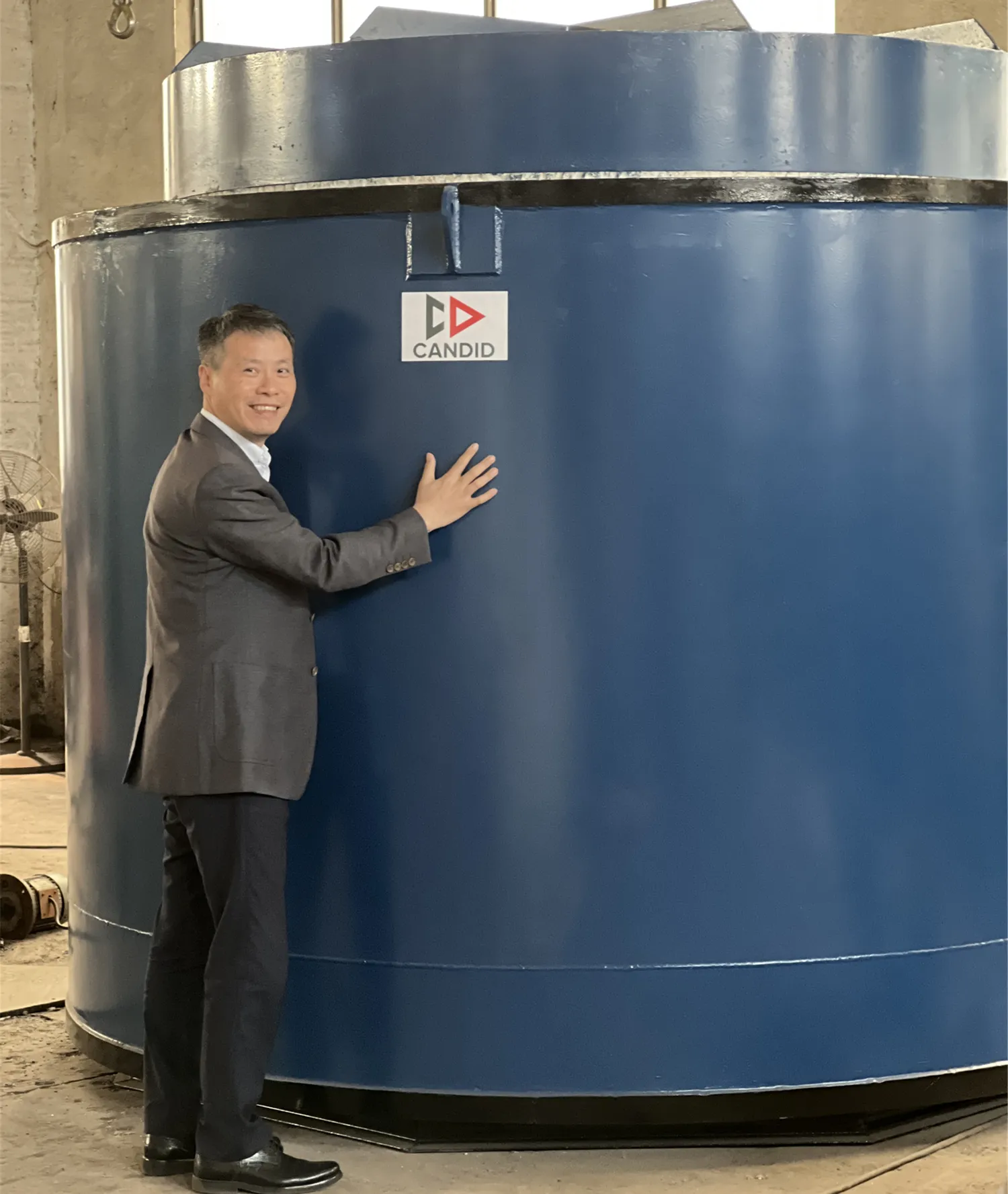

Electric Annealing furnace is mainly used for annealing and heat treatment of coiled wire, copper, stainless steel, steel strip and metal parts. After annealing, the work piece is kept clean with less oxidation and no decarburization. It is composed of furnace body, furnace tube, furnace cover, heating element, temperature control cabinet, etc.
Get a Quote Model | RJ-90-9 (2 tubes) |
Power supply | Electricity |
Capacity | 2.0T/8hours |
Power | 70kw |

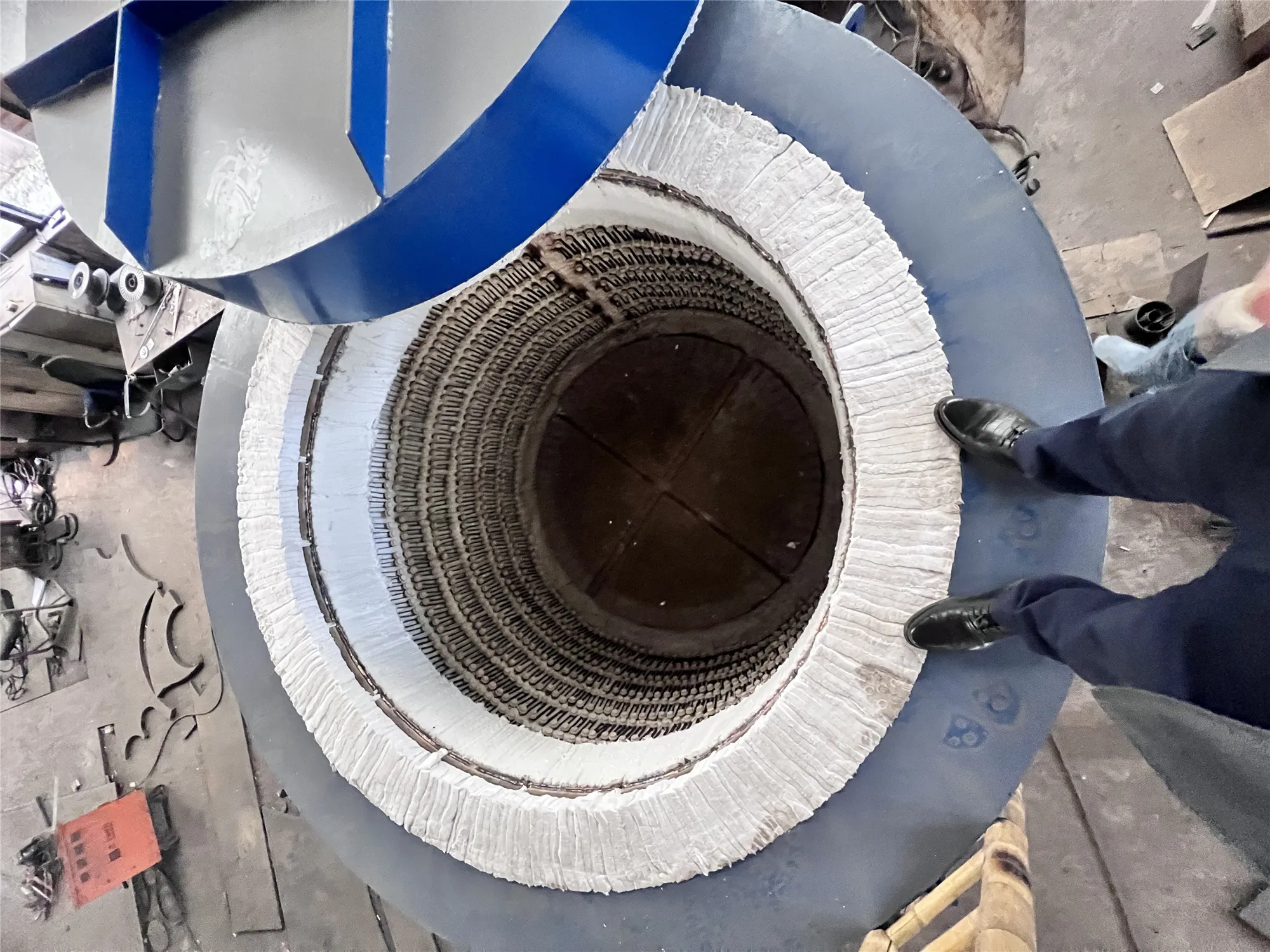

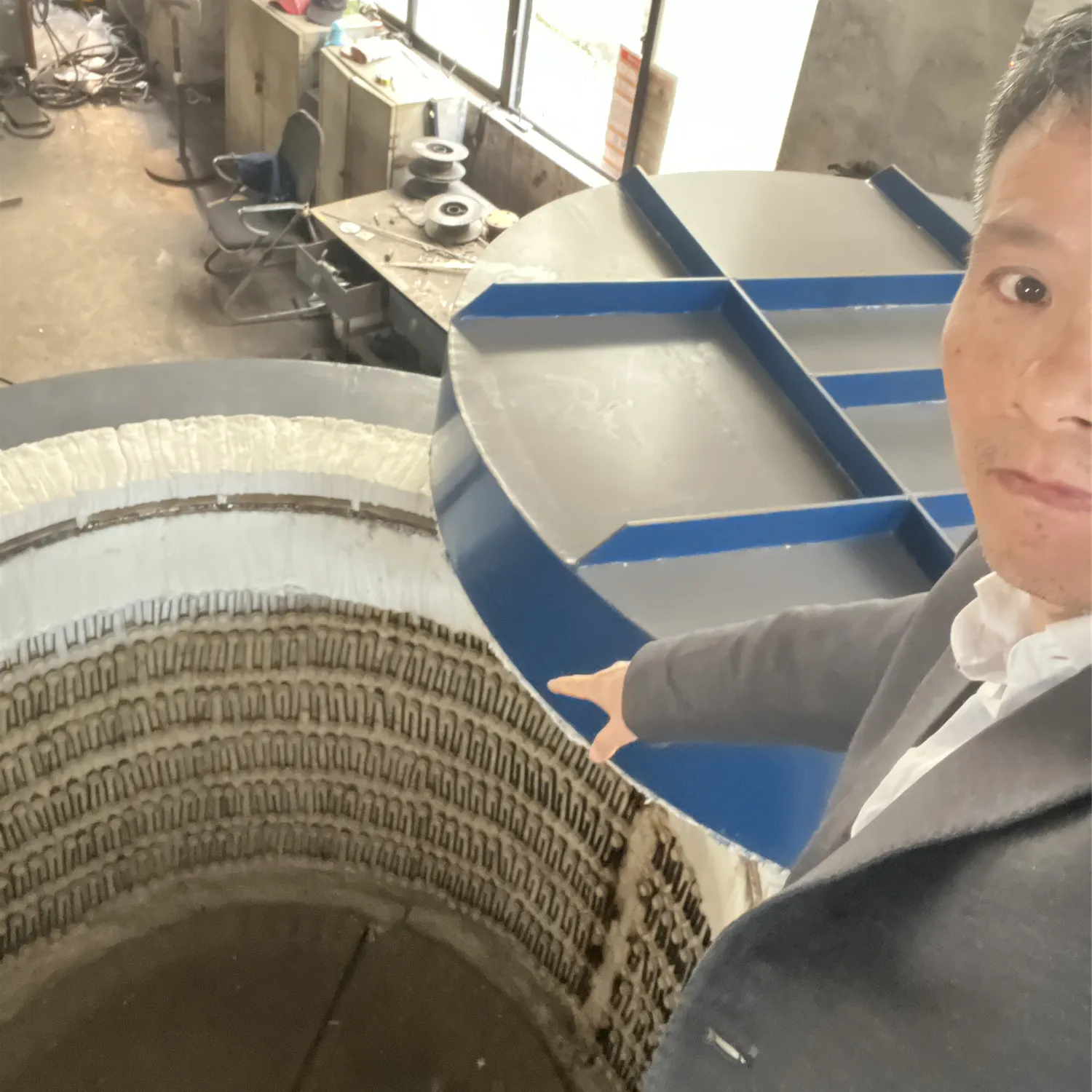

Furnace Body
5mm Q235 board furnace shell
Lightweight firebrick Internal liner
Holocellulose alumina silicate keeping temperature

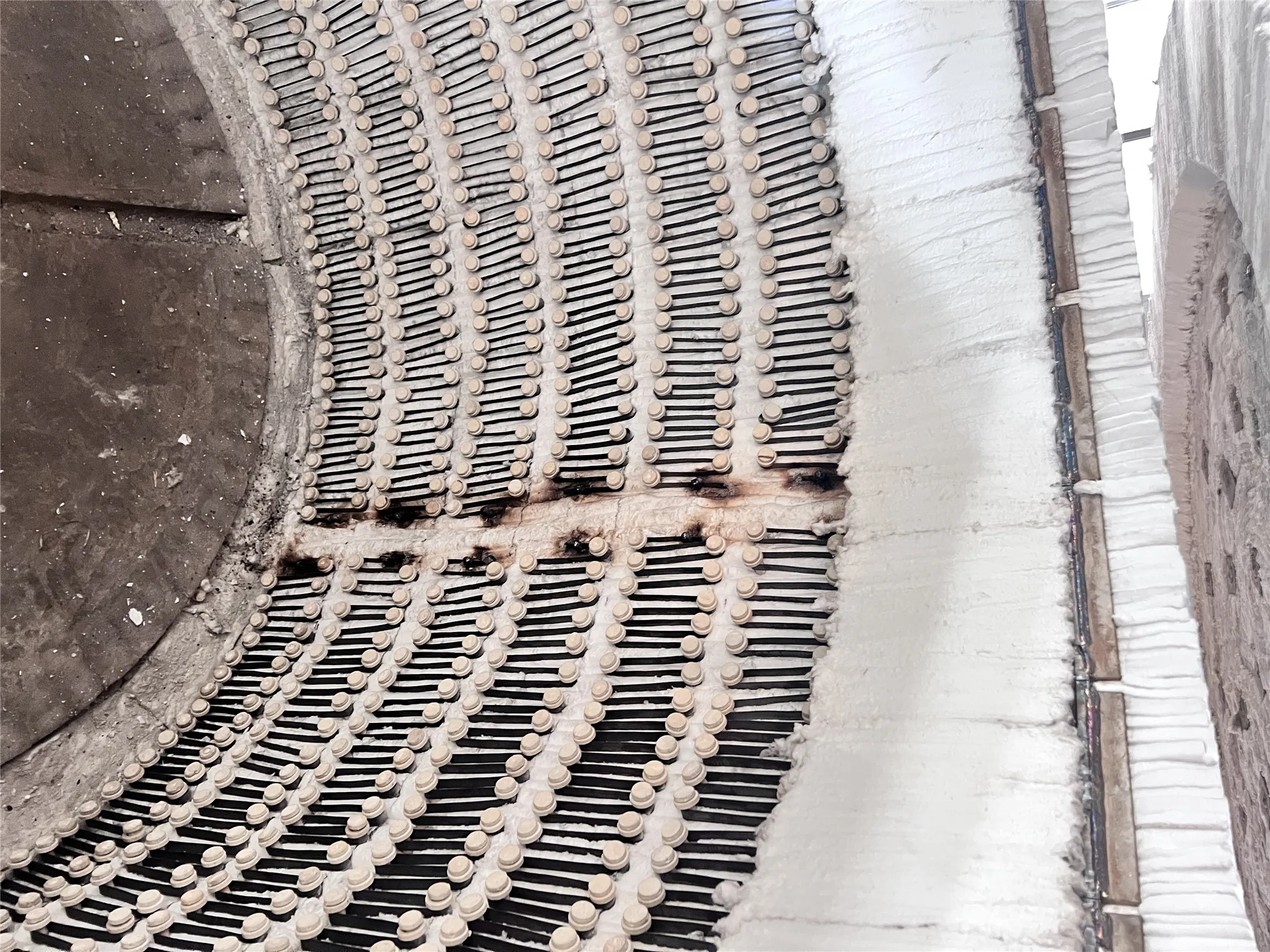

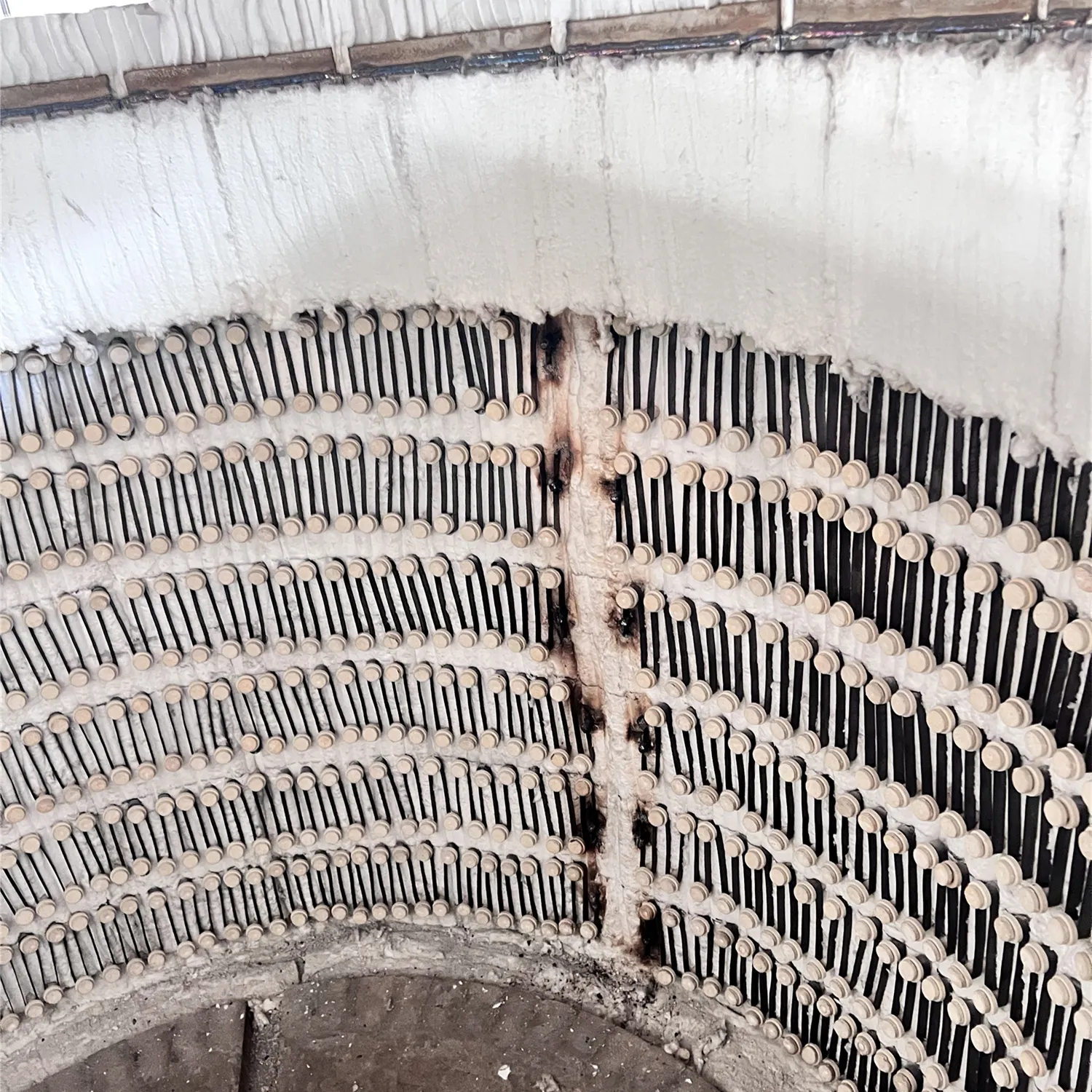

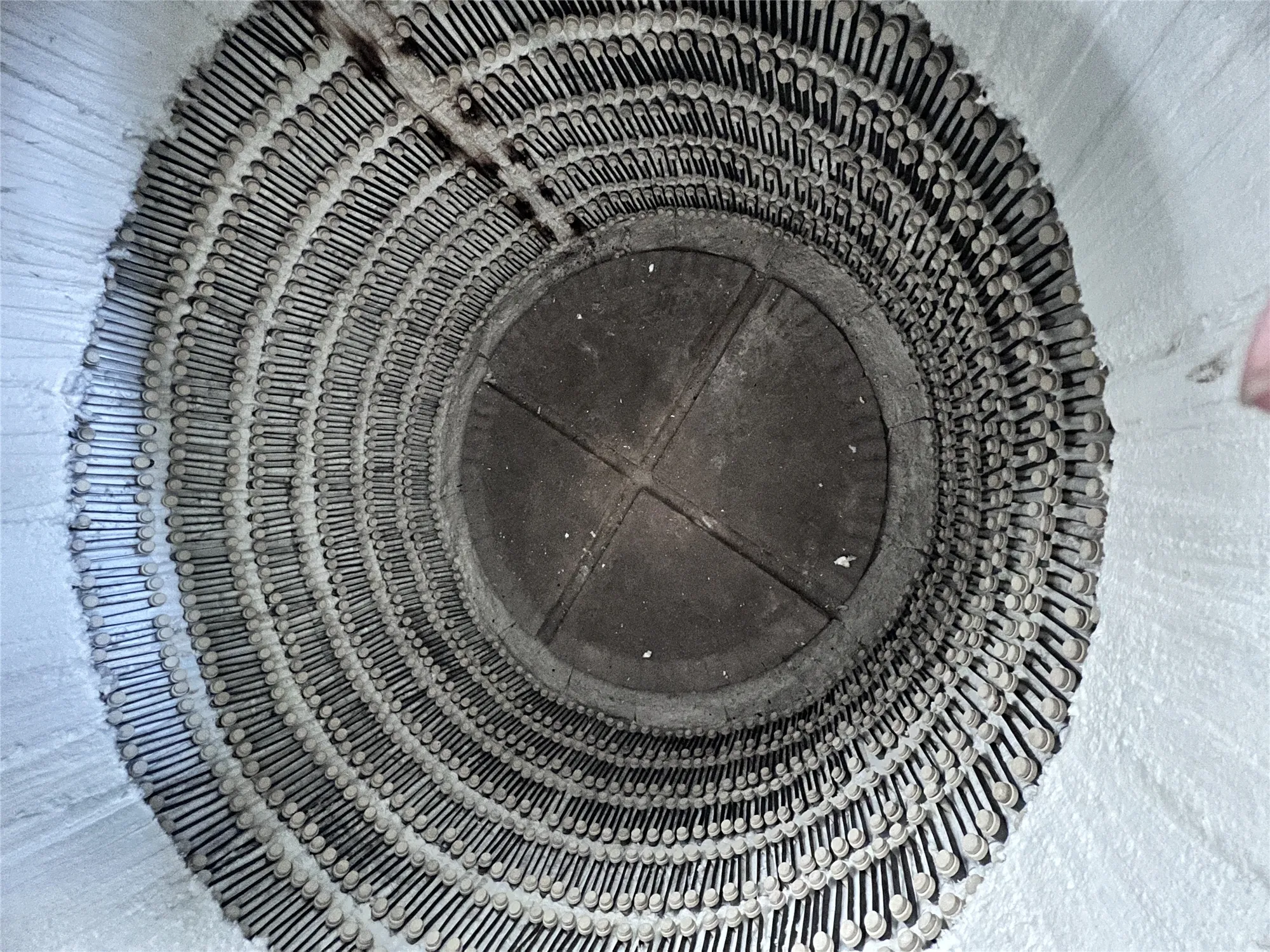

Heating element: Cr20Ni80
Furnace Tube
Thickness: 8mm, Dia.: 800mm, high: 1200mm
Material: Stainless Steel
Working Process of Annealing Wire:
a. Two hours heating to 650°C-700°C
b. Keeping Temperature 650°C-700°Cfor 2 hours
c. Keep the tube in the furnace, cooling for 4 hours till the temperature is about 300°C
d. Taking out of the tube put another one in
e. When the tube temperature is below 170°C, take the wire out
We offer Electricity annealing furnace and gas annealing furnace.
650-700ºC

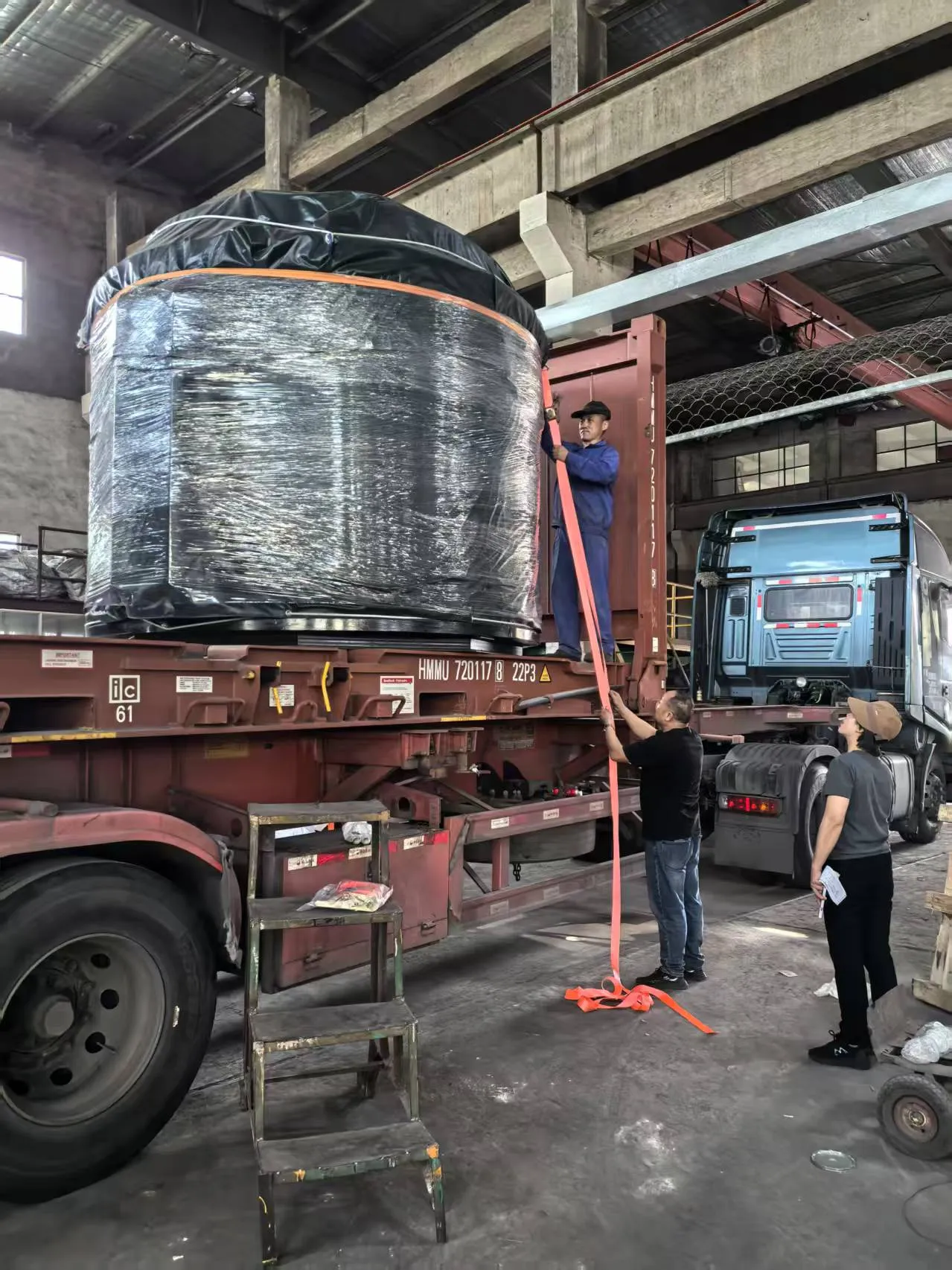

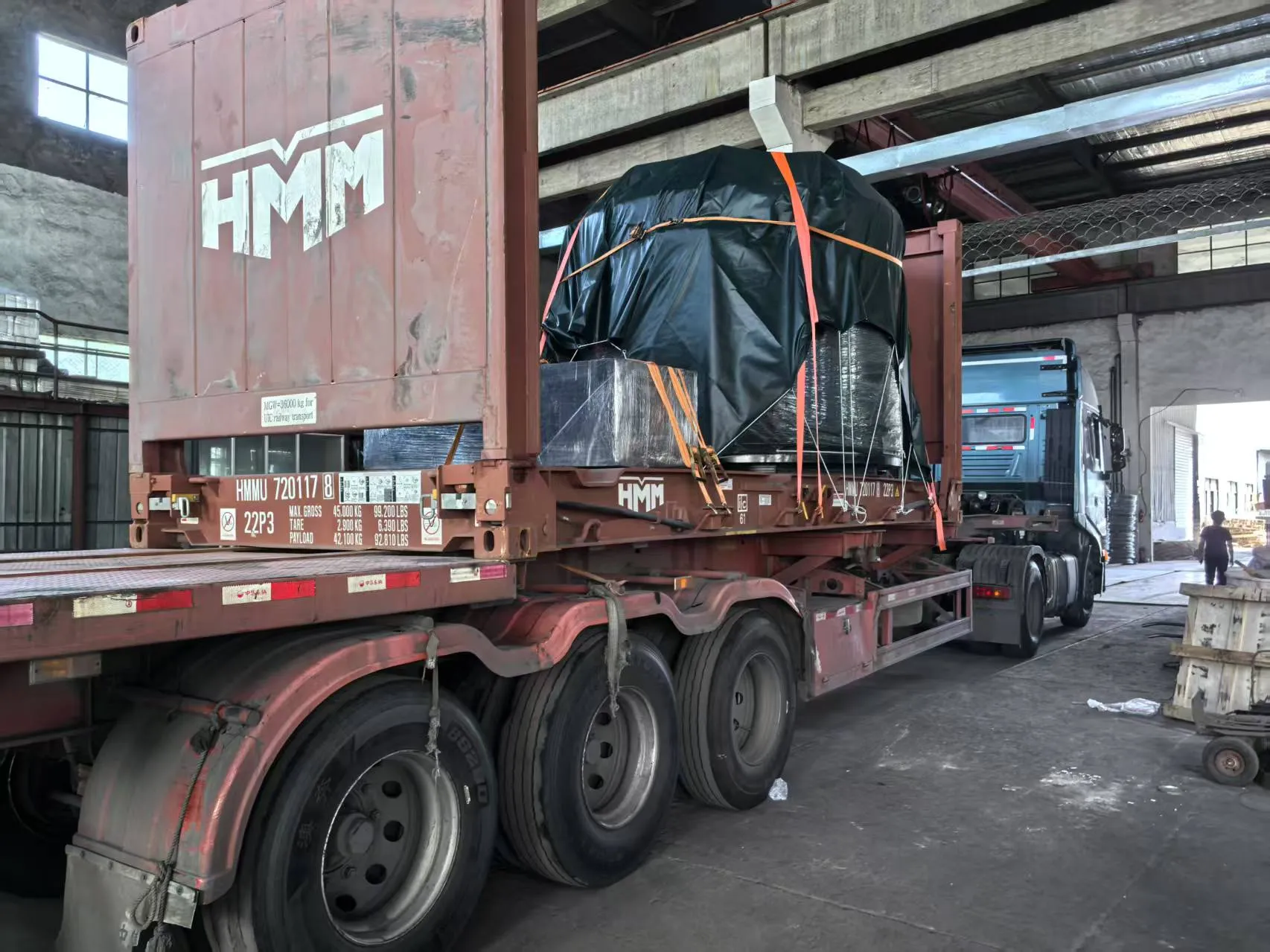

The nearest sea port from our factory is Shanghai port.
12 months after commissioning or 18 months after shipment. Whichever first is in valid. (it is excluding wear parts. Shipping cost for parts to be replaced during warranty period has to be borne by the customer.)
1 technicians and 1 interpreter will be assigned to coordinate installation, commissioning and training, for the maximum duration of 15 working days your side will supply the air return tickets, food, accommodation(hotel and one day three meals), transportation, communication, insurance, tax ( if have) for the technicians and the interpreter. USD120.00/day/person working fee will be paid to them.
We have different capacity which according to client's request, the most common type is 3 ton/24hours.
